Product Details:
|
| Cutting Length: | 0.1-99999.9mm | Cutting Tolerance: | Within 0.002*L(L=cutting Length) |
|---|---|---|---|
| Head Stripping: | RV Cable Is Up To 120mm, And Sheathed Wire Is Up To 500mm | Tail Stripping: | Up To 260mm |
| Cable Types: | PVC Cables, Sheathed Wires, Etc. | Stripping Size: | 10-70 Mm |
| High Light: | Dia25mm cut and strip wire machine,Dia25mm automatic cable cutting machine,1800PCS/H automatic cable cutting machine |
||

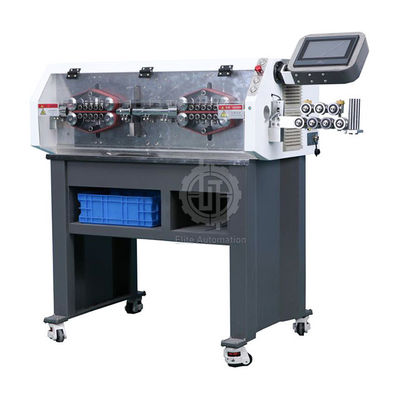

Touch Screen Wide Application Range Large Cable Cutting and Stripping Machine

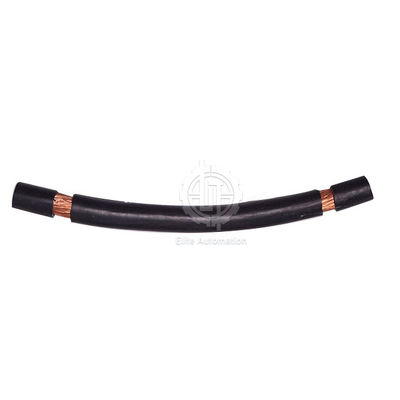

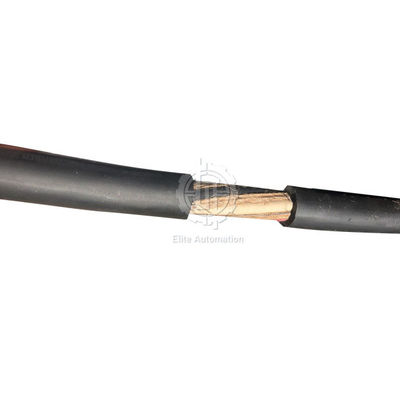

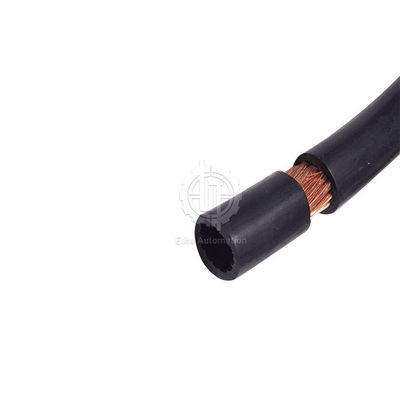

This machine can automatically cut and strip the insulation at both ends, with the ability to perform multi-level stripping processing at the same time.
Industrial grade control chip with high-precision motor and driver, allowing the machine to run at high speed for an extended period of time
100 sets of stripping procedures can be saved using controller control and touch screen operation mode.
This is a new type of cable processing equipment that is controlled by a microcomputer. Power cable, electric control cabinet, battery box cable, new energy vehicle wiring harness, charging pile harness, charging gun wiring harness, BV hard wire, and BVR soft wire are the most common applications.
Cutting lengths range from 0.1 to 99999.9mm, and stripping wire sizes range from 10-70mm.
10-70 mm; 20.1-99999.9 mm
It can adjust the length of the wire as needed, as well as the head and tail peeling, which greatly improves efficiency.
Can easily process cables up to 70 Sq mm in size, and strong power is a guarantee to improve work efficiency.
This machine has powerful functions, and it has several ports set aside for the input and output signals of some auxiliary equipment.
Auxiliary equipment includes an automatic wire feeder, a receiver, a robot, and a winding machine, among other things.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Cutting length | 0.1-99999.9mm |
| Cutting tolerance | within 0.002*L(L=cutting length) |
| Head stripping | RV cable is up to 120mm, and sheathed wire is up to 500mm |
| Tail stripping | up to 260mm |
| Cable types | PVC cables, sheathed wires, etc. |
| Stripping size | 10-70 mm |
| Max diameter | Φ25 |
| Blades materialaterial | imported high speed steel |
| Capacity | 1800 PCS/h |
| Feeding method | Feeding with belt, the cable has no indentation |
