Product Details:
|
| Cutting Length: | 1-60000mm | Cutting Tolerance: | (±0.0002×L)mm |
|---|---|---|---|
| Conductor Cross-Section: | 0.1-4.5 Sqmm | Stripping Features: | Stripping Outer Jacket And Inner Cores |
| Stripping Length: | Head: 0-150mm, Tail: 0-100 MmInner Wire Head: 10mm, Tail: 10mm | Conduit Diameter: | Flat 100*8*6mm (can Be Customized) |
| High Light: | CNC flat cable cutting machine,0.1sqmm flat cable cutting machine,0.1sqmm small wire stripping machine |
||

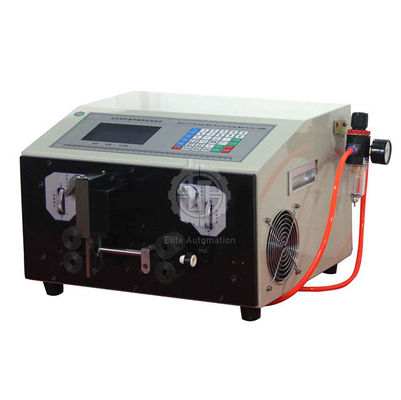

LCD touch Screen CNC Control Flat Cable Cutting and Sheath Stripping Machine
This fully automatic wire cutting and stripping system is designed for cutting and stripping sheathed flat cables, including outer jacket and inner core wires.
This machine uses a hybrid drive and is a fully automatic CNC that incorporates advanced Japanese and Taiwanese technologies.

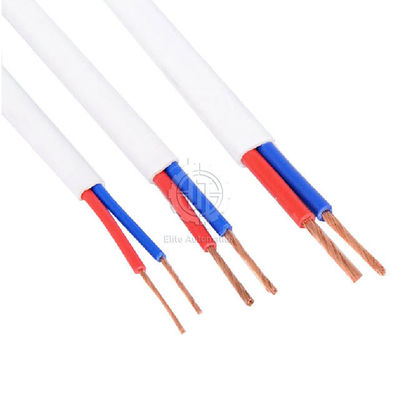

Suitable for multi-core sheathed flat cables processing;
Beautiful appearance, smooth operation, easy maintenance, reliable performance, fast speed, and high precision; LCD touch screen dialog mode;
This wire processing is widely used in electronics, automobile and motorcycle components, electrical equipment, engines, lamps, and toys.
Cutting and stripping all at once saves time and labor while rising efficiency.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Cutting Length | 1-60000mm |
| Cutting Tolerance | (±0.0002×L)mm |
| Conductor Cross-Section | 0.1-4.5 sqmm |
| Stripping Features | stripping outer jacket and inner cores |
| Stripping length | Head: 0-150mm, Tail: 0-100 mmInner wire head: 10mm, Tail: 10mm |
| Conduit Diameter | Flat 100*8*6mm (can be customized) |
| Speed(pcs/h) | L=100mm, 4000–7000pcs/h |
| Drive Method | 4 wheels drive |
| Display Screen | English/Chinese LCD ScreenEnglish/Chinese LCD Screen |
| Power | 300W |
| Power Supply | 110/220V 50/60Hz110/220V 50/60Hz |
| Machine size | 42*39*28CM |
| Weight | 32KG |
