Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine

Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine
Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine

Large Image :  Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine

Product Details:
Place of Origin: China
Model Number: EL-CPSSM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine

Description
Cutting Depth Unit: 0.01 Mm Maximum Stripping Layers: 9 Layers
Maximum Processing Cable Diameter: 18mm Maximum Skinning Length: 90mm
Power Supply: 110V/220V/ 50HZ Package Size: 720x230x350 Mm

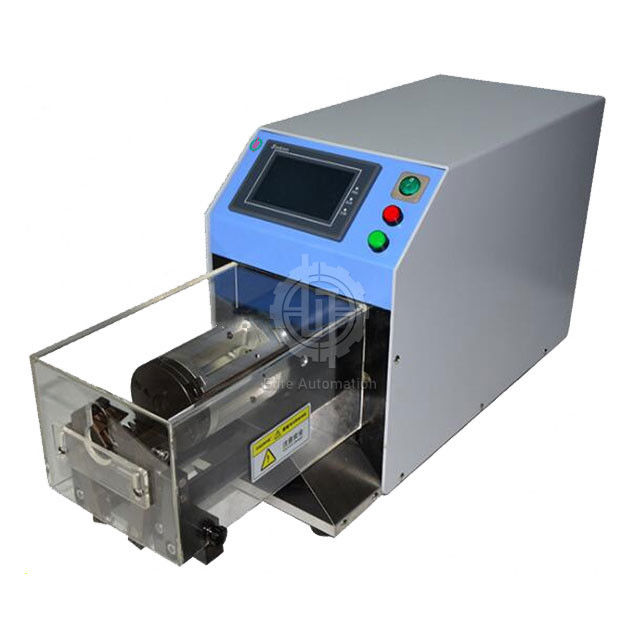

Up to 9 layers Concentric Positioning Coaxial Cable Spiral Stripping Machine

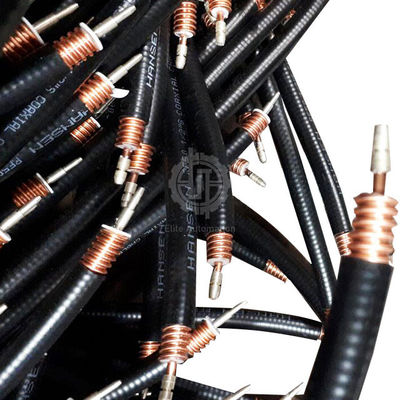

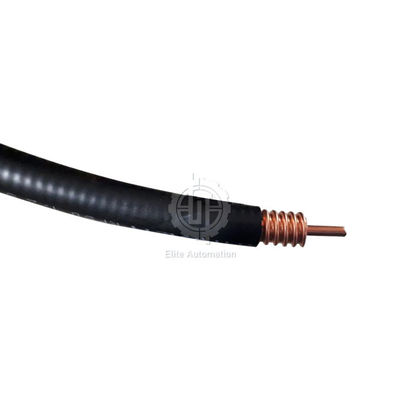

This coaxial wire stripping machine can strip up to 9 layers and the machine uses a specific concentric positioning method of device to eliminate the retrieve of the center when there is a tooling change.

There are 50 sets of data can be memorized for make it easy to setup various functions, with the following working modes: 1) automatic peeling, 2) manual peeling, and 3) foot switch operation peeling

The transmission is driven by NSK from Japan, and the ball bearings and wire rods to keep the motion accuracy within 0.08 mm

The host control system adopts Japan high-precision PLC multi-point control system, which make the performance for more stable

The blade adopts imported tungsten steel, and the precision of the cutting is ensured by 15 high-precision grinding processes with a cutting finishing of 0.0005 mm

For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Cutting depth unit 0.01mm
Maximum stripping layers 9 layers
Maximum processing cable diameter 18mm
Maximum skinning length 90mm
Power supply 110V/220V/ 50HZ
Package size 720x230x350 mm



Up To 9 Layers Concentric Positioning Coaxial Cable Spiral Stripping Machine 0
