Product Details:
|
| Stripping Length: | 1-200mm At The Head Of The Wire, 1-100mm At The Tail Of The Wire | Cutting Length: | 0.1-99999.99mm |
|---|---|---|---|
| Drive Mode: | 8-wheel Independent Drive | Output: | Depending On The Length And Size Of The Wire |
| Catheter Diameter: | Φ6-18mm | Dimensions: | 800 X 650 X 450mm |

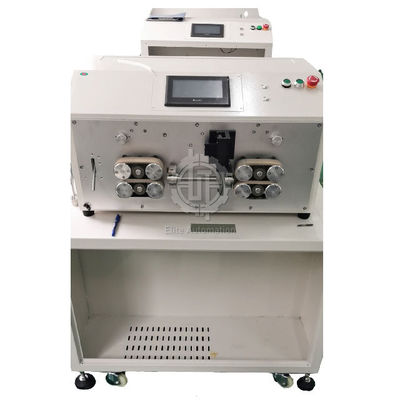

Cable Jacket processing for a Single mode or a Partial mode Stripping Machine

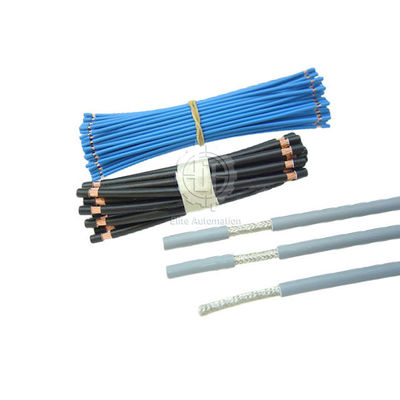

This machine can partially strip the two ends’ jacket of a cable. This kind of operation is widely used in automotive industry, electric sensor industry, electrical control industry, battery industry.
The machine support multiple mode function for varies of wire such as long wire, short wire, sheathed wire. It can be applied to single or multi-segment stripping. The touch screen introduce a very good a human-machine interface. The PLC control system makes the cutting and stripping dimension more precisely.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Stripping range | 4-35 mm2/4-50 mm24-35 mm/4-50 mm |
| Cutting length | 0.1-100,000mm |
| Length accuracy | ≤0.2%mm |
| Stripping length | 1-200mm at the head of the wire, 1-100mm at the tail of the wire |
| Drive mode | 8-wheel independent drive |
| Maximum peeling diameter | 16mm |
| Catheter diameter | Φ6-18mm |
| Air pressure | 0.2-0.6mpa |
| Output | 1000-15000 pcs/h (depending on the length and size of the wire) |
| Power supply | 220V 50HZ |
| Motor power | 0.75KW |
| Storage program | 0-99 sets of cable processing data |
| Blade material | imported high-speed steel |
| Weight | 115kg |
| Dimensions | 800 x 650 x 450mm |
