Product Details:
|
| Applicable Sleeving: | Fiber Sleeving (woven Mesh Sleeving), Melt Cut Materials | Applicable Wire Range: | Custom Type (the Wire Diameter Does Not Exceed The Pipe Diameter) |
|---|---|---|---|
| Applicable Guide Tube Range: | Diameter 12-25mm | Cutting Accuracy: | ±3MM |
| Speed: | Depending On Sleeving Size And Manual Operation Speed | Weight: | About 80KG |
| Dimension: | 500W*1230L*1115H(mm) (subject To Actual Production) | Power: | Single Phase AC 220V/50HZ |

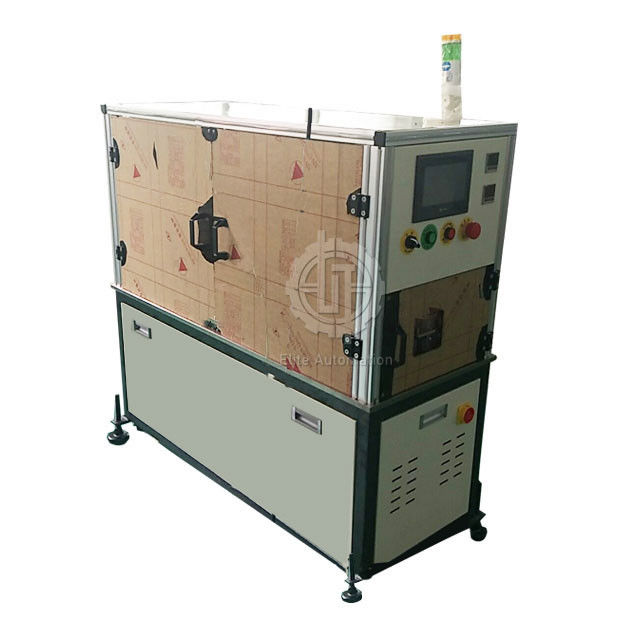

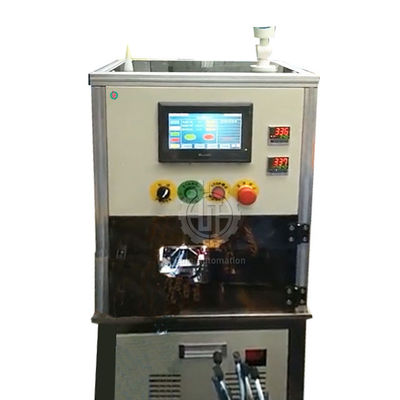

Braided Sleeve Warping and Cable Cutting Machine for Wire Harness
The machine warping the braided sleeve for wire harness or cables, it is done by a fine-tunable photoelectric and a PLC system. The cutting length can be set and the output is extremely stable.
It can be applied for automotive, wire harness, electronic, medical, metal, toys industries.
The machine can perform good threading, fast speed and precise cutting by a very simple operation and setting.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Applicable sleeving | fiber sleeving (woven mesh sleeving), melt cut materials |
| Applicable wire range | custom type (the wire diameter does not exceed the pipe diameter) |
| Applicable guide tube range | diameter 12-25mm |
| Cutting accuracy | ±3MM |
| Cutting length | 100mm-1200mm |
| Speed | no less than 1000PCS/hour (depending on sleeving size and manual operation speed) |
| Power | single phase AC 220V/50HZ |
| Energy consumption | 400W/Hr |
| Weight | about 80KG |
| Dimension | 500W*1230L*1115H(mm) (subject to actual production) |
