Product Details:
|
| Cutting Diameter: | 1-30mm | Cutting Width: | 80mm |
|---|---|---|---|
| Speed: | 20-60 P/m(depending On Length) | Control System: | PLC Human Machine Interface |
| Air Pressure: | 0.5-0.7Mp | Size: | 570x490x460mm |

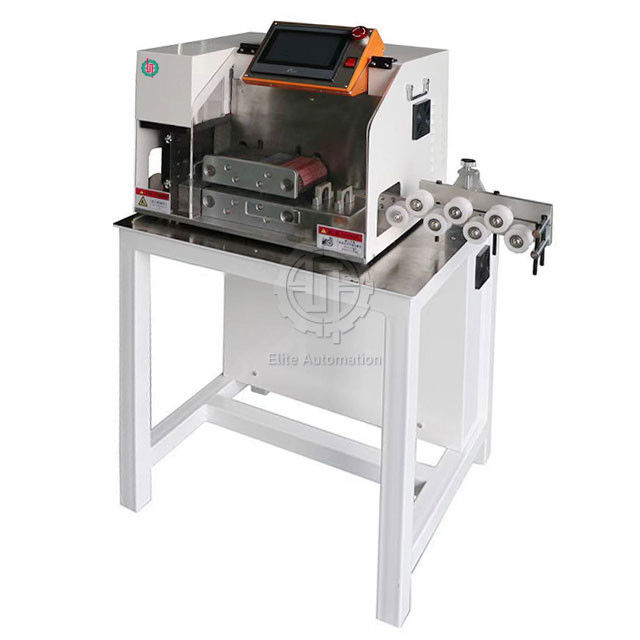

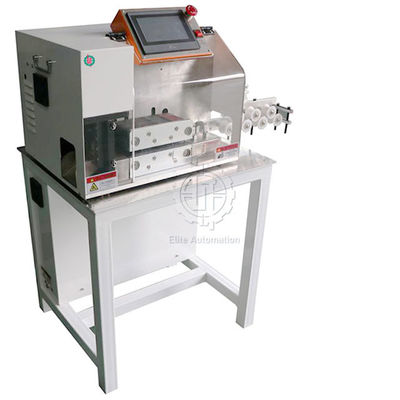

All-in-One Cable and Tube Cutting Machine

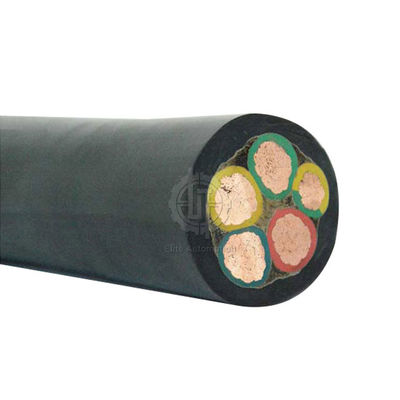

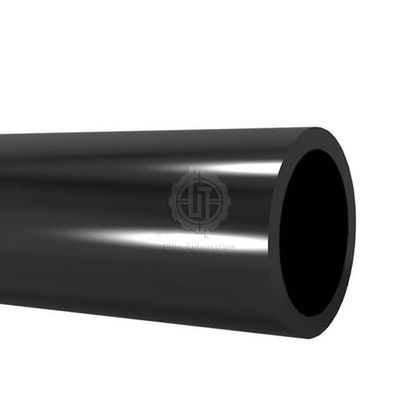

This is an all-in-one cable and tube cutting machine specially designed for cutting thick tubes and large cables up to 300 square mm. it is commonly used in automotive industry and the application which need to have a thicker cutting function. With the featuring positioning function, it can process accurate cutting according to the set length.
The control system is using the PLC human interface which is very user-friendly.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Cutting diameter | 1-30mm |
| Cutting width | 80mm |
| Speed | 20-60 p/m(depending on length) |
| Control system | PLC human machine interface |
| Air pressure | 0.5-0.7Mp |
| Voltage | 220V 50-60HZ |
| Size | 570x490x460mm |
| Weight | 70KG |
| Power | 200W |
| Cutter stroke | 50mm |
| Cutting method | cylinder |
