Product Details:
|
| Features: | Wire Cutting Stripping And Bending | Model: | JR-004 |
|---|---|---|---|
| Conductor Cross-section: | 1-16mm2 | Stripping Length: | 0.1-100mm |
| Cutting Length: | 1-100,000mm | Cutting Tolerances: | ± (0.001xL)mm |
| High Light: | Automatic Wire And Cable Bender Machine |
||

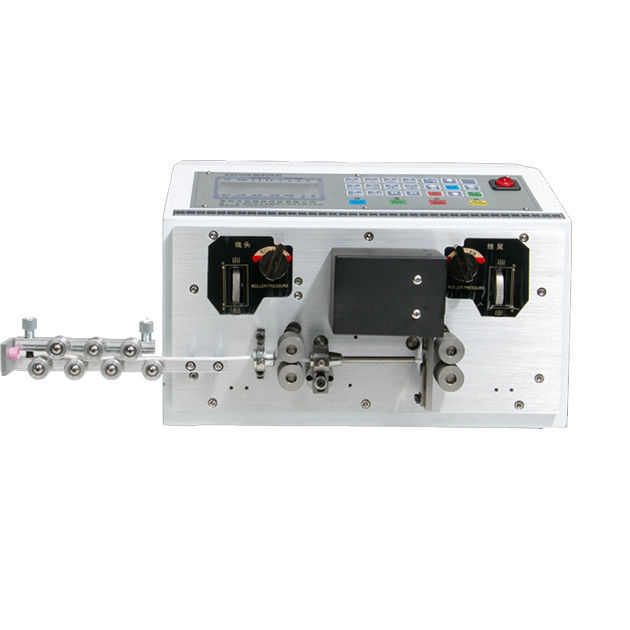

Automatic Wire and Cable Bender Machine
This wire cutting stripping and bending machine is suitable for processing 1-16mm2 wires. It can strip both ends of the wire, and bend the wire into your required shape.
This is a high performance wire cutting stripping and bending machine for processing 1-16mm2 wires and cables;
It can not only strip both ends of the wire, but also bend the wire into your requested angle;
The straightforward display provides information in the selected language about the current processing status, very visualized;
The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;
Affordable price and perfect working performance.
| Model | JR-004 |
| Features | Wire cutting stripping and bending |
| Conductor cross-section | 1-16mm2 |
| Stripping length | 0.1-100mm |
| Cutting length | 1-100,000mm |
| Cutting tolerances | ± (0.001xL)mm |
| Bending length | Can be set |
| Bend shape/angle | U shape, Z clockwise, counterclockwise bend, 30°, 45°, 60°, 90° |
| Production rate | L=100mm, 2,000-3,000pcs/h |
| Power supply | 110/220VAC, 50/60Hz |
| Power | 600W |
| Conduit diameter | Generally ⌀ 10mm, can be customized according to wire size |
| Display screen | Chinese/English touch screen |
| Weight | 55KG |
| Dimensions | 53x53x40cm |
