Product Details:
|
| Machine Name: | Automatic Computerized Peeling And Thread Cutting Machine (2.5 Square Meters) | Conduit Diameter: | 1.5-2.5mm |
|---|---|---|---|
| Production Efficiency: | 3000-8000 PCS / H | Cutting Wire Core: | 0.1-2.5 M2 |
| Weight: | 25kg | Remark Function: | Incoming Line, Outgoing Line, Sample, Timing Start, Output Can Be Set, Tangent Speed Can Be Adjusted |
| Cutting Length: | 1-99999.99mm | Dimensions: | 400*300*330mm |
| Stripping Length: | 10mm For Head And 10mm For Tail | Blade Material: | Imported High Speed Steel, Tungsten Steel |
| Pulse Equivalent: | No Error Within 2m | Intermediate Stripping: | Paragraph 15 |
| Driving Mode: | Four Wheel Simultaneous Drive | Accuracy Of Incoming And Outgoing Motor: | Silent Mixing Motor 0.01mm Per Step |
| Power Supply: | AC175V-260V50/60HZ | Cutting Tolerance: | Within 0.002 * L |
| Power: | 120W-220W | Line Pressure Adjustment: | Have |
| High Light: | Automatic Computerized Wire Stripper |
||

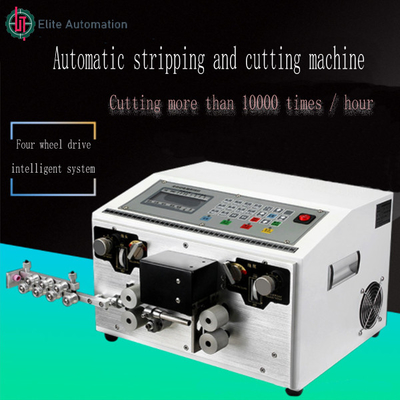

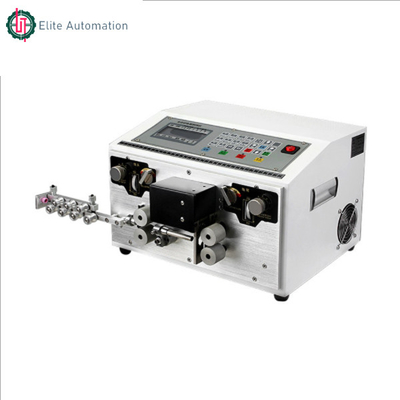

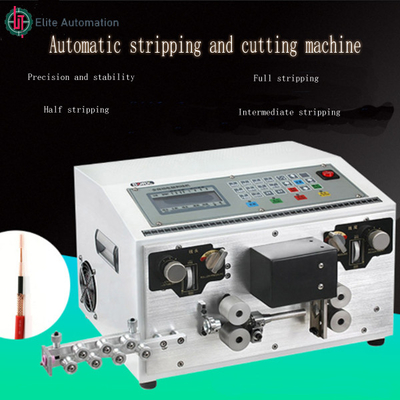

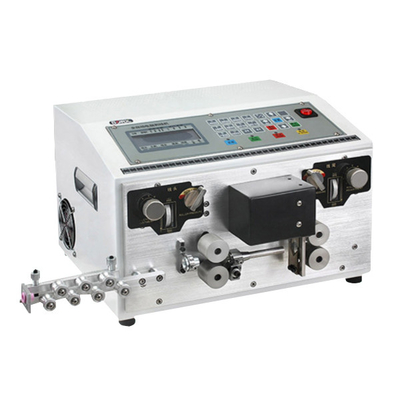

The machine is suitable for a variety of wires, such as electronic wire, FEP wire, silica gel wire, glass fiber wire, coaxial line, isolation wire, sleeve, etc. Function: realize the full stripping, semi stripping and medium stripping of wire. The machine uses a fully automatic moving tool holder, four wheels are driven at the same time, the gear is cut off, the knife cut is neat, and the stripping quality is stable. Led dual language (Chinese / English) setting, simple operation, intelligent setting and flexible replacement. Seven straighteners are adopted to make the wire more straight and accurate, and improve the work quality and efficiency. Provide a variety of accessories for more convenient use
| Machine name | Automatic computerized peeling and thread cutting machine (2.5 square meters) |
| Conduit diameter | 1.5-2.5mm |
| Production efficiency | 3000-8000 PCS / h |
| Cutting wire core | 0.1-2.5 M2 |
| Weight | 25kg |
| Remark function | Incoming line, outgoing line, sample, timing start, output can be set, tangent speed can be adjusted |
| Cutting length | 1-99999.99mm |
| Dimensions | 400*300*330mm |
| Stripping Length | 10mm for head and 10mm for tail |
| Blade material | Imported high speed steel, tungsten steel |
| Pulse equivalent | No error within 2m |
| Intermediate stripping | Paragraph 15 |
| Driving mode | Four wheel simultaneous drive |
| Accuracy of incoming and outgoing motor | Silent mixing motor 0.01mm per step |
| Power supply | AC175V-260V50/60HZ |
| Cutting tolerance | Within 0.002 * l |
| power | 120W-220W |
| Line pressure adjustment | Have |
