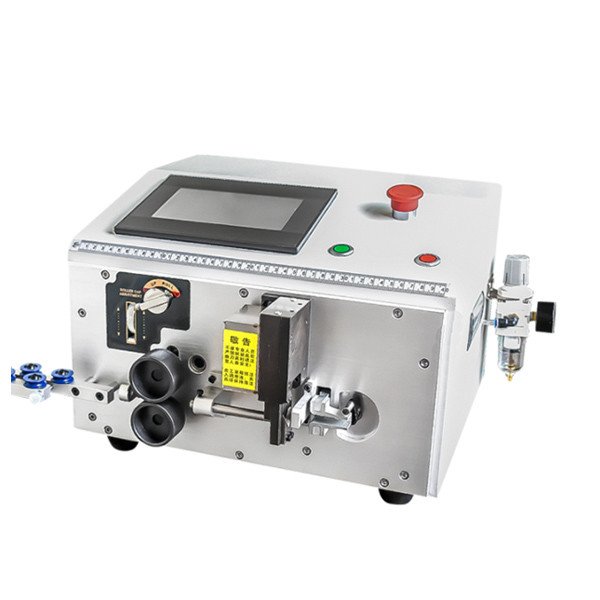

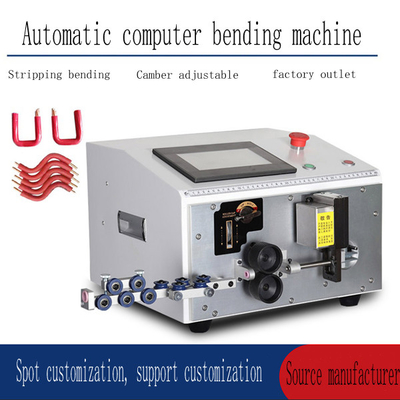

Automatic computer peeling bending machine line bending

Automatic computer peeling bending machine line bending
Automatic computer peeling bending machine line bending
Automatic computer peeling bending machine line bending Automatic computer peeling bending machine line bending Automatic computer peeling bending machine line bending Automatic computer peeling bending machine line bending Automatic computer peeling bending machine line bending

Large Image :  Automatic computer peeling bending machine line bending

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Kaianrui
Payment & Shipping Terms:
Minimum Order Quantity: 3platform
Price: Price according to customer's requirement
Packaging Details: Wooden case
Delivery Time: 2 weeks
Payment Terms: T/T
Supply Ability: 20 sets / day

Automatic computer peeling bending machine line bending

Description
Product Name: Automatic Computer Two End Stripping And Bending Machine Bending Length: Arbitrarily Adjustable
Overall Dimension: 530*470*340mm Display Interface: 7-inch Touch Screen (Chinese And English Switchable)
Net Weight: 60KG Cutting Tolerance: Within 0.002xlmm

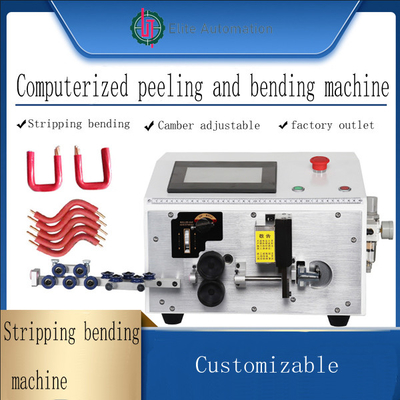

Computerized peeling and thread cutting machine

Wire stripping machine is the most widely used machine in the machinery industry. People now rely on various mechanical automation in many places, and wire stripping machine is the machine that can help people produce most. Wire stripping machine has been deeply loved by customers with ultra-high efficiency and automation. Wire harness processing equipment is slowly improving from the initial manual wire harness processing to the current mechanical equipment processing and bending machine. In the past, relying on manual work, not only the workload was heavy, but also the quality of the processed wire rod was not high. The length of the wire rod processed by the full-automatic stripping bending machine was uneven, and the inner core was easy to be damaged, which was very easy to affect the products that need to use these wire rods later. At present, the application market is still semi-automatic wire stripping machine with semi-manual and semi-machine. However, with the development of the times, the processing workshop has higher and higher requirements for processing accuracy, speed and quality, and the fully automatic wire stripper can just meet this market. At the same time, it also brings the wire stripper into a new era of automation and intelligence.

Machine parameters
Product name Automatic computer two end stripping and bending machine
Bending Length Arbitrarily adjustable

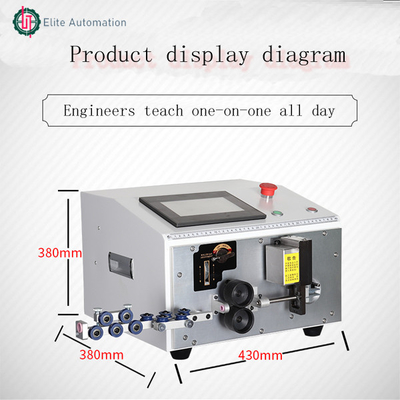

Overall dimension 530*470*340mm
Display interface 7-inch touch screen (Chinese and English switchable)
Net weight 60KG
Cutting tolerance Within 0.002xlmm
Cutting wire diameter Bv hard wire 0.1-16m2, BVR soft wire 0.1-25m2
Bending mode Clockwise, counterclockwise and bending degree are adjustable, which can be bent up and down, and the same line can be folded at any angle
Conduit diameter Match by model
Slide rail Taiwan Shangyin linear slide
Tool material Imported high speed steel
Power Supply AC175V-250≤50/60HZ
Driving mode Four wheels
power 180W~600w
Number of bending segments 10 time
Cutting length 0.1mm-99999.9mm
storage 200 pieces of data
Stripping head Front stripping 35mm, rear stripping 30mm
yield About 800-1500 pieces (depending on the wire)
Including packing weight 65KG

Automatic computer peeling bending machine line bending 0
