Product Details:
|
| Cutting Quantity Range: | 1-15 Pieces | Die Change Time: | 0.3-1 Minutes |
|---|---|---|---|
| Tungsten Steel Saw Blade: | Ø180mm* 1.0mm * 100T / Ø150* 0.8mm * 120T | Cutting Width: | 1.0 Mm/0.8 Mm |
| Travel Range: | 480mm | Cutting Accuracy: | ±0.03mm |
| High Light: | 1Min Automatic Tube Cutting Machine,Dia0.6mm Automatic Tube Cutting Machine,Dia0.6mm metal tube cutter |
||

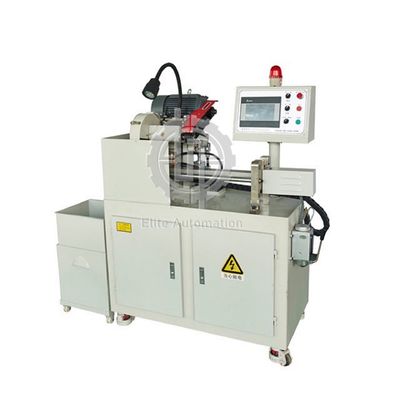

Metal Rod Metal Pipe Brass Tube Aluminum Rod Cutting Machine
This is a fully automatic metal rod, metal pipe, brass tube, aluminum rod, plastic rod, and other materials cutting unit.

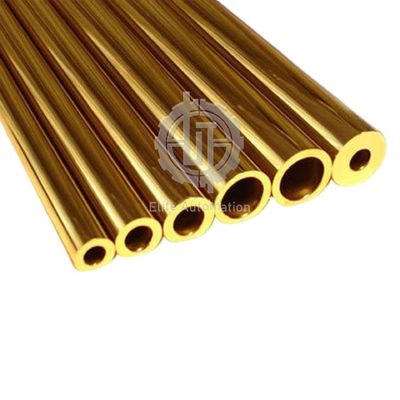

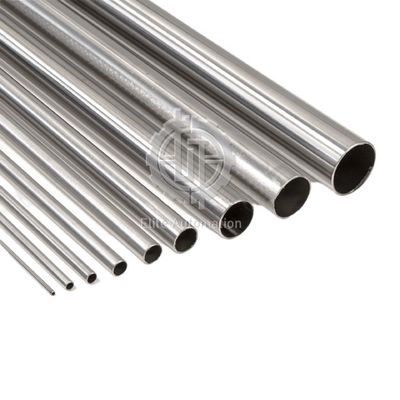

Metal pin, metral pipe, brass tube, aluminum rod, and other copper (aluminum) materials are used for cutting.
Delta PLC + Touch Screen (Delta)Delta PLC + Touch Screen (Delta)
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Cutting surface | smooth without burrs |
| Cutting size range | 1mm-2,000mm |
| Cutting quantity range | 1-15 pieces |
| Die change time | 0.3-1 minutes |
| Tungsten steel saw blade | Ø180mm* 1.0mm * 100T / Ø150* 0.8mm * 120T |
| Cutting width | 1.0 mm/0.8 mm |
| Travel range | 480mm |
| Cutting material | copper (aluminum) material |
| Material size | about 6000mm |
| Diameter range | 0.6mm-48mm |
| Cutting accuracy | ±0.03mm |
| Product verticality | ±0.01mm (adjustable verticality) |
| Main motor | Siemens four-stage motor |
| Main motor power | 3.0KW |
| Servo accuracy | 0.001mm |
