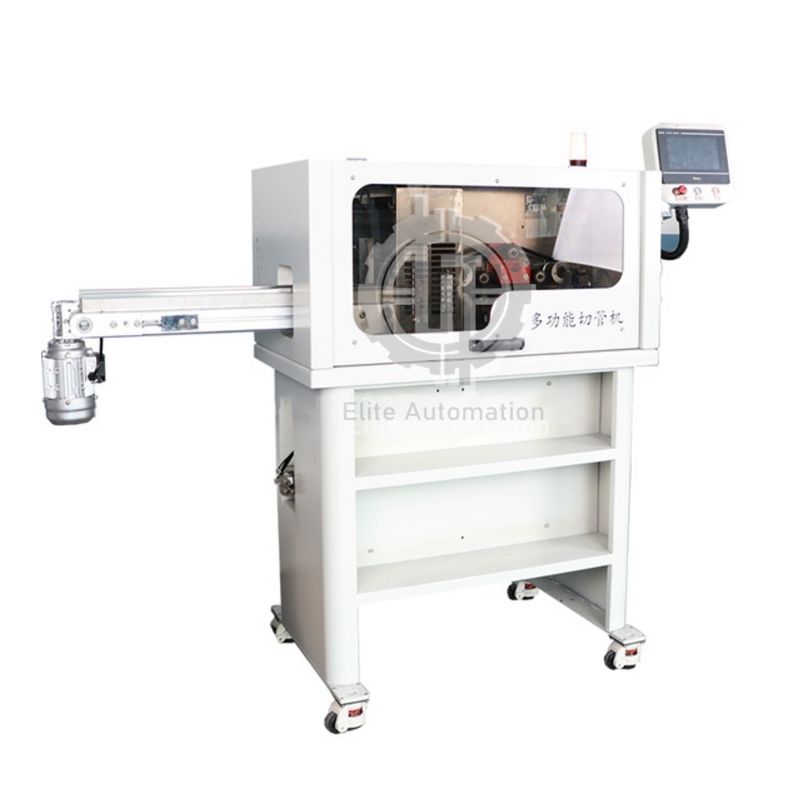

Crawler Feeding Corrugated Tube Cutting Machine

Crawler Feeding Corrugated Tube Cutting Machine
Crawler Feeding Corrugated Tube Cutting Machine Crawler Feeding Corrugated Tube Cutting Machine

Large Image :  Crawler Feeding Corrugated Tube Cutting Machine

Product Details:
Place of Origin: China
Model Number: EL-ATCLM
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Packaging Details: Wooden Case
Delivery Time: 2-3 weeks
Payment Terms: T/T

Crawler Feeding Corrugated Tube Cutting Machine

Description
Cutting Method: Rotating Round Knife Feeding Method: Crawler Feeding
Blade Moving Method: Digital Control Motor Output Method: Conveyor Belt Output
Feed Stroke: 40mm Cutting Diameter: ø1-ø40mm
High Light:

crawler feeding corrugated tube cutting machine

,

40mm stroke corrugated tube cutting machine

Automatic Tube Cutting to length Machine for Corrugated Tubes Plastic Pipes PVC Tubes etc



The universal hose and tube cutting system is designed for automated cut-to-length and cutting of a variety of materials. Our universal cutting machine produces accurate results with reasonable cut efficiency and fast working speeds for corrugated tubes, plastic pipes, PVC tubes, silicon tubes, and many other materials.



Cutting with a motor blade, rotating cutting, and high precision

Because of the interchangeable cutting instruments, it can be used for a variety of tasks.

Due to the high feeder pace, the cutting output is excellent.



For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.



Cutting method rotating round knife
Feeding method crawler feeding
Blade moving method digital control motor
Output method conveyor belt output
Feed stroke 40mm
Cutting diameter ø1-ø40mm
Length error ± 0.5
Cutter power 1KW
Power source 220V 50-60HZ
Speed 20-40 pcs / minute
Power 2,000W
Size 1,020x530x1,300 (not including protrusions)
Weight about 270KG
