Product Details:
|
| Winding Inner Diameter: | Adjustable From 80 To 250mm | Winding Outer Diameter: | Max 300mm |
|---|---|---|---|
| Available Wire Width: | 10-70mm | Winding Cycle: | 1-999 Cycle |
| Winding Speed: | 1-4 Cycle/s | Available Wire Size: | Ø2-7mm Or Ø 6-10mm |
| Highlight: | HDMI Cables Automatic Wire Winding Machine,HDMI Cables meter counting machine,4 Cycle/S meter counting machine |
||

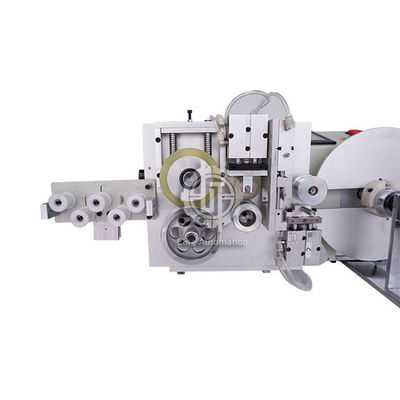

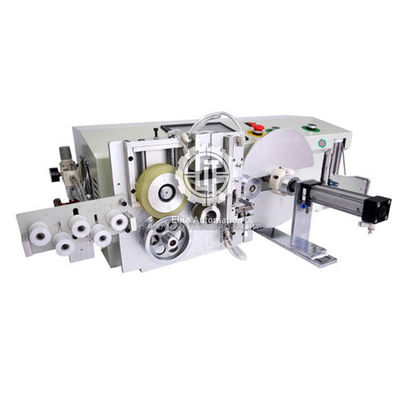

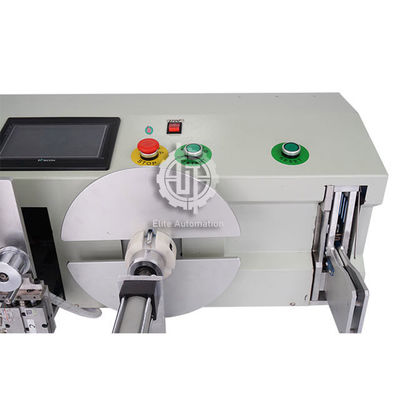

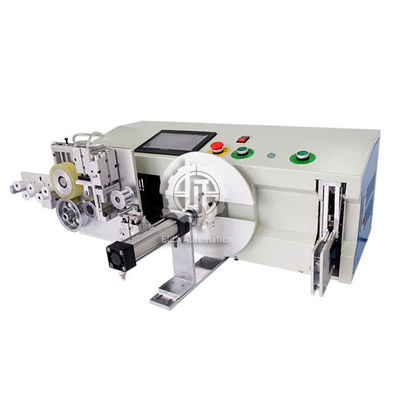

Automatic Wire Winding Meter Counting Machine for USB HDMI AC DC Cables etc
A counting meter is included with this automated cable winding and tying system. It can handle AC, DC, USB, video, and HDMI high-definition cables of various diameters.
Counting meters, winding, cutting, and tying high-definition cables and wires of various diameters
The finished product is really tidy, and it's a great helper when it comes to bundling wires.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Winding inner diameter | Adjustable from 80 to 250mm |
| Winding outer diameter | Max 300mm |
| Available wire width | 10-70mm |
| Winding cycle | 1-999 cycle |
| Winding speed | 1-4 cycle/s |
| Available wire size | Ø2-7mm or Ø 6-10mm |
| Suitable wire shape | Round wire, flat/ribbon wire, 2-pin double wires, etc. |
| Power | AC220V 50hz/110v 60HZ |
| Power Rating | Max 1000W |
| Dimension | 1100*1150*430mm |
| Net weight | 60KG |
