Product Details:
|
| Wire Head Size: | 0-100mm | Wire Tail Size: | 30-400mm |
|---|---|---|---|
| Wire Winding Length: | 120-220mm | Wire Length: | Max.4000mm |
| Capacity: | 1,100-1,400PCS/H | Machine Size: | 1,005mm*690mm*1,560mm |
| High Light: | bundling Automatic Wire Winding Machine,H1.56m Automatic Wire Winding Machine,H1.56m wire bundling machine |
||

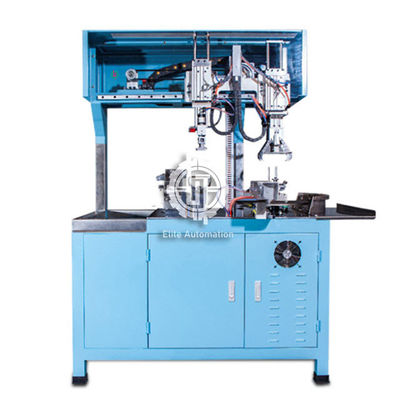

AC Power Cord Coil Winding and Bundling Machine with PLC and Servo Motors
The coil winding and bundling machine for AC power cords will complete coil winding and twisting tie at the same time.
The coil winding and twisting of links can be completed at the same time.
The wire head, wire tail, and wire coil lengths can all be modified.
PLC and servo motors power the entire system. The operation is straightforward, reducing labor costs while increasing productivity.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Wire head size | 0-100mm |
| Wire tail size | 30-400mm |
| Wire winding length | 120-220mm |
| Wire length | Max.4000mm |
| Capacity | 1,100-1,400PCS/H |
| Operating air pressure | 0.5-0.7Mpa |
| Power | ≤1.6kw/h≤ |
| Machine weight | 220KG |
| Machine size | 1,005mm*690mm*1,560mm |
