Product Details:
|
| Suitable Material: | AC Wires, DC Wires, Etc. | Finished Type: | 8-shaped Single Tie |
|---|---|---|---|
| Suitable Cable Tie: | Rubber Core, No Core | Applicable Length: | ≤ 6m |
| Applicable Diameter: | ≤Φ6.2MM | Winding Distance: | 65-240MM |
| High Light: | single tie cable tying machine,6m cable tying machine,Rubber Core automatic coil winding machine |
||

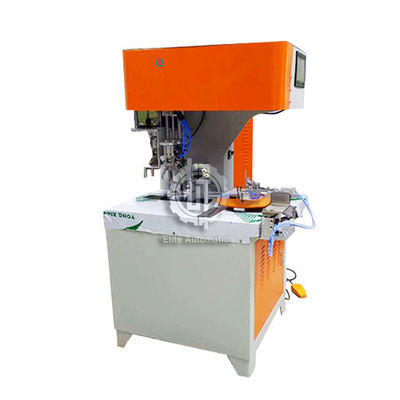

Fully Automatic 8 Shape Wire Winding and Tying Machine for USB Cables Power Cords and so on
The fully automatic 8-shape wire winding and binding system is designed to handle a variety of cables and wires. Up to 1800 pieces per hour can be produced.
Suitable for processing a variety of cables and wires of various sizes, such as USB cables, power cords, and other similar products.

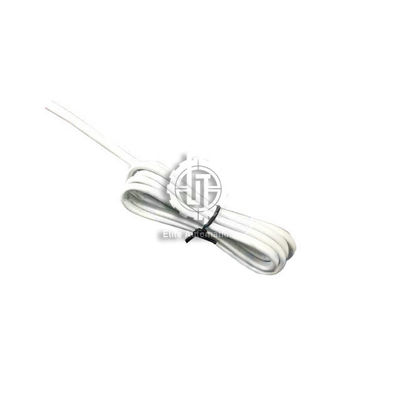

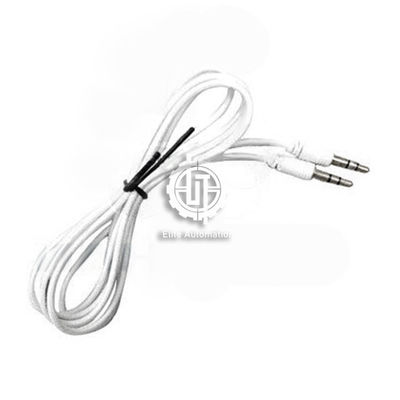

8-shaped tying, leaving head and tail, or holding head and tail together, high efficiency, up to 1800 parts per hour
Simple to use, manage, and troubleshoot
It's small and compact, so it doesn't take up much space.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Suitable material | AC wires, DC wires, etc. |
| Finished type | 8-shaped single tie |
| Suitable cable tie | Rubber core, no core |
| Applicable length | ≤ 6m |
| Applicable diameter | ≤Φ6.2MM |
| Winding distance | 65-240MM |
| Ligation diameter | ≤ 45MM |
| Main motor | servo and step motor |
| Voltage | 210-240V 5A |
| Theoretical yield | 1800pcs/h |
| Gas consumption | Air consumption of ordinary peeling machine |
| Power consumption | Air consumption of ordinary peeling machine |
| Head length | 0-100MM |
| Tail length | >0MM |
| Air pressure | 0.4-0.55 Mpa |
| Number of turns speed | Adjustable |
| Size (mm) | 800*600*1400 mm |
