Product Details:
|
| Appearance Size: | 1300mm*80000mm*1500mm | Weight: | 350kg |
|---|---|---|---|
| Soldering Machine USB Soldering Machine Automatic And Semi-automatic Soldering Machine Equipment: | 25pcs/min |

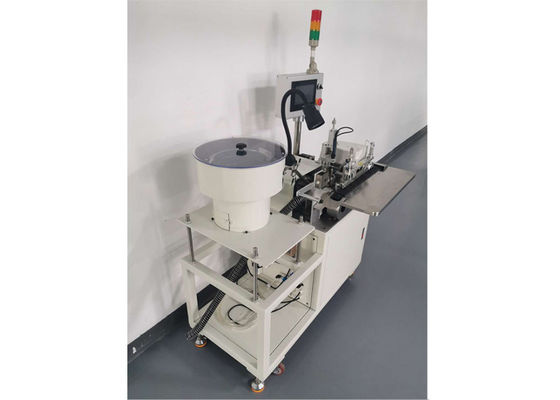

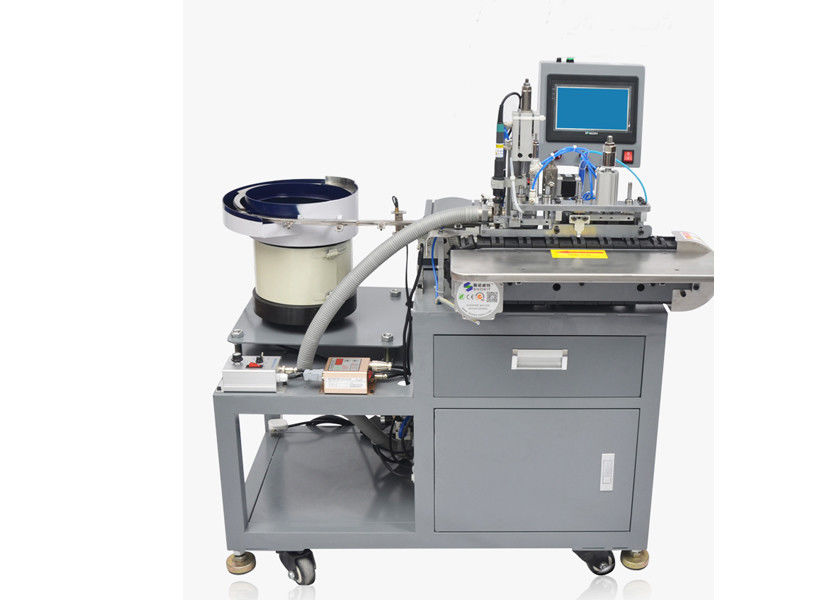

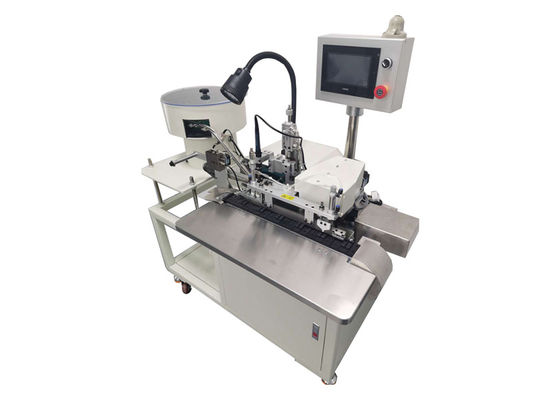

USB soldering machine
Feature description
In order to meet the urgent demand of the shortage of soldering station and the high treatment of soldering station in wire product industry, 680 series wire plug soldering machine was successfully launched. It is suitable for the welding of USBA male and female, min5p, maikou and other hardware parts. 800-1000 per hour, save time and effort, save tin line, minimize your production cost.
1. The machine adopts vibrating plate automatic feeding, feeding and manual setting out.
2. Automatic counting, output setting.
3. Using touch screen, the interface is intuitive, simple and safe.
4. The machine has the function of testing and separating defective products.
5. If there is a fault, it will stop automatically, give an alarm and display the error message.
Specification parameters
Model USB automatic soldering machine
Power supply av220v50-60hz
Air pressure > 0.6MPa
Size 1300 * 8000 * 1500 (mm)
Capacity 25pcs / min
