Product Details:
|
Appearance Size: | 500mm*300mm*580mm | Weight: | 40kg |
---|---|---|---|
Binding Length: | 90-120mm | ||
High Light: | 200mm Spacing Automatic Winding Machine,Customized Automatic Winding Machine,50mm Spacing Automatic Winding Equipment |

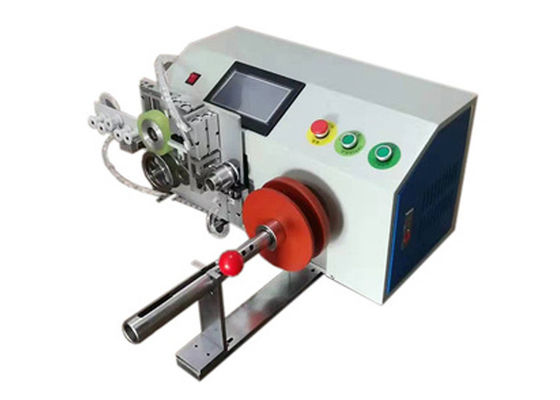

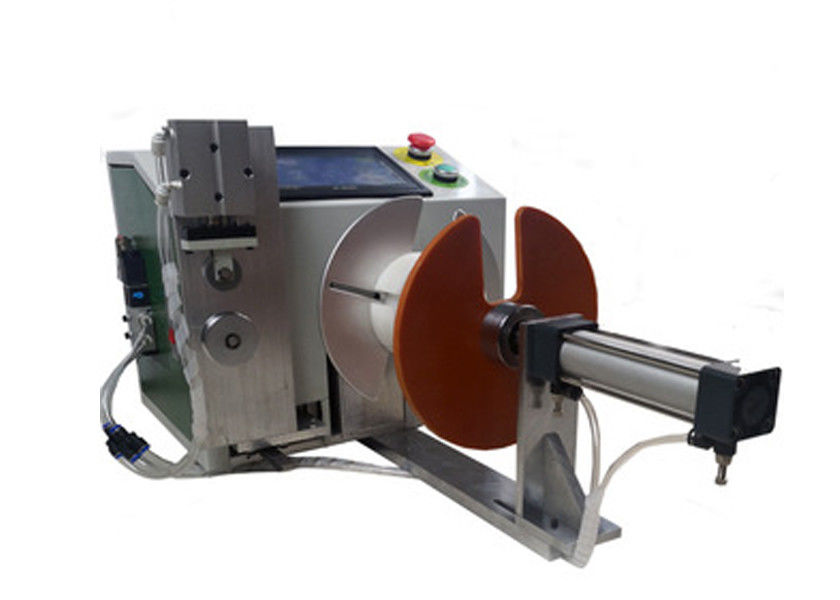

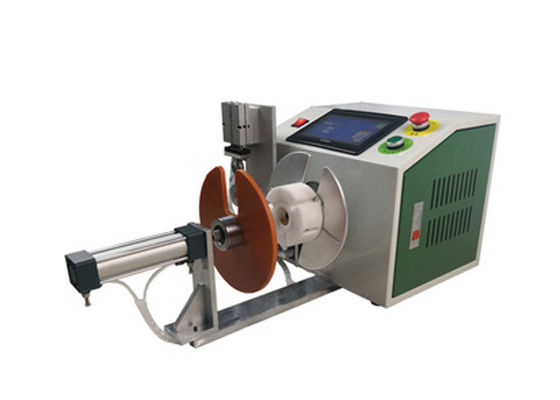

Automatic Winding Machine Winding Machine Winding Machine Equipment Can Be Customized
Background technology of semi-automatic winding and binding machine:
The wire industry is highly labor-intensive and labor-intensive; AC and DC wires generally need to be wound by hand and tied with ties, which is extremely inefficient and takes up a large amount of human resources.
The purpose of the utility model is to provide a simple and efficient semi-automatic wire winding and binding machine, which can automatically wind wires into bundles and automatically twist the binding band. The utility model is composed of a frame component, a winding component, a clamping component, a feeding component, a wire shifting component, a twisting component and a man-machine interface panel. In the frame component, there are some electrical components and control lines for electrical control. On the frame component, there are winding components, a clamping component, a feeding component, a wire shifting component, a twisting component and a man-machine interface panel The winding column and clamping groove are installed on the turntable; the clamping assembly is provided with a clamping tension roller fixed on the clamping slider and installed on the clamping sliding table; the feeding assembly is provided with a belt feeding wheel and a belt cutting knife, which are installed on the feeding sliding table; the belt clamping air claw is arranged in front of the feeding sliding table, and the belt roller is arranged behind the feeding sliding table; the wire shifting assembly is provided with a winding assembly and a feeding group There are two pairs of mechanical air claws fixed on the z-axis sliding table and installed on the combined sliding table of x-axis and y-axis; the twisted wire assembly is equipped with twisted wire air claws with rotation axis, fixed on the z-axis sliding table and installed on the translation sliding table. The frame assembly of the equipment is equipped with winding assembly, clamping assembly, feeding assembly, shifting assembly, twisting assembly and man-machine interface panel, which is simple in structure, convenient in use, alternate winding operation and high efficiency; in control aspect, PLC programmable logic controller is adopted for control, which has simple operation interface, general programming and simple maintenance. It only needs to be set according to different programs, namely It can wind and tie different wires.
Function characteristics of semi-automatic winding and binding machine
This machine is suitable for AC power cable, DC power cable, USB data cable, video cable, HDM high-definition cable and other transmission lines. It can be twisted into bundles with coated iron core. It can also be used in other industries, such as clothes hanger, etc.
Employees only need to fix the end of the thread, use the foot switch to wind the thread, and then take it out and put it to the binding mouth to tie the tape automatically. The whole process only takes 4-5 seconds. The machine can set the length of the wire and the number of coils, and count the output. This machine adopts PLC program control, text display for parameter setting, easy to operate. It can reduce the fatigue strength of employees, improve work efficiency, and save tie.
Technical parameters of semi-automatic winding and binding machine
Model: kar-120p semi-automatic winding and binding machine
Length of tie: 80-140mm
Strap diameter: 10-30mm
Strapping speed: 1 second
Winding spacing: 50-200 mm
Winding speed: 1-10 adjustable
Power supply: ac220v50 / 60Hz
Machine size: 700 × 550 × 400mm
Weight: 45kg
