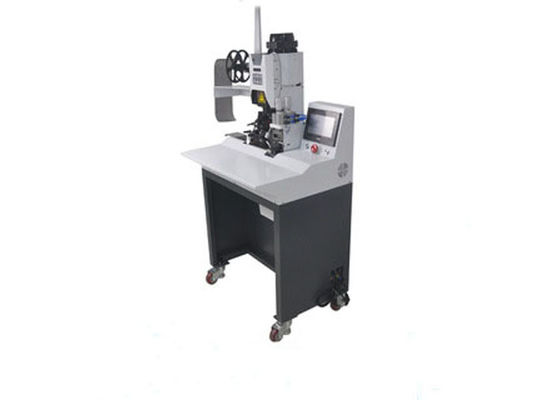

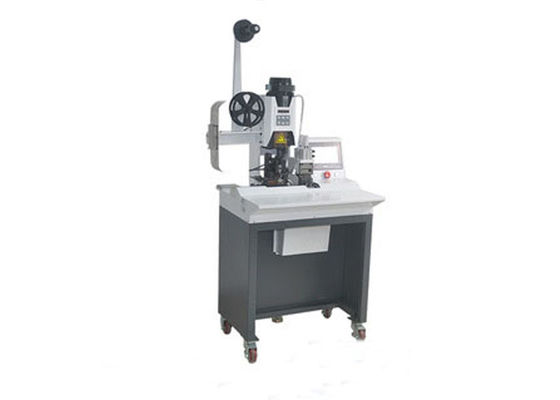

Automatic Terminal Crimping Machine Five Wire Terminal Punching Machine Sheath Wire Arranging Terminal Punching Machine

Automatic Terminal Crimping Machine Five Wire Terminal Punching Machine Sheath Wire Arranging Terminal Punching Machine

Specification parameters

Model name: automatic wire arranging terminal pressing machine (double head)

Cutting length: 72mm-9999mm

Package size: length 1.45M × width 0.850m × height 1.75m

Cutting accuracy: ± 0.5mm

Overall dimension: length 1.85M * width 0.76M * height 1.83M

Peeling length: 2mm-10mm

Weight: 527kg

Wire type: 2468, gray rehearsal, rehearsal, etc

Working pressure: 0.4mpa-0.6mpa, the gas source should be filtered and dried

Maximum line width: 28mm

Working voltage: 220V50H

Maximum number of wires: 20p

Rated current: 15A

Single line width: 0.8mm-2.5mm

Power: 3300W

Termination efficiency: 18000pcs / h (max. 20p)

Space: 2mx2.5m

Special functions: single head play, double head play, interval play, positive and negative play
