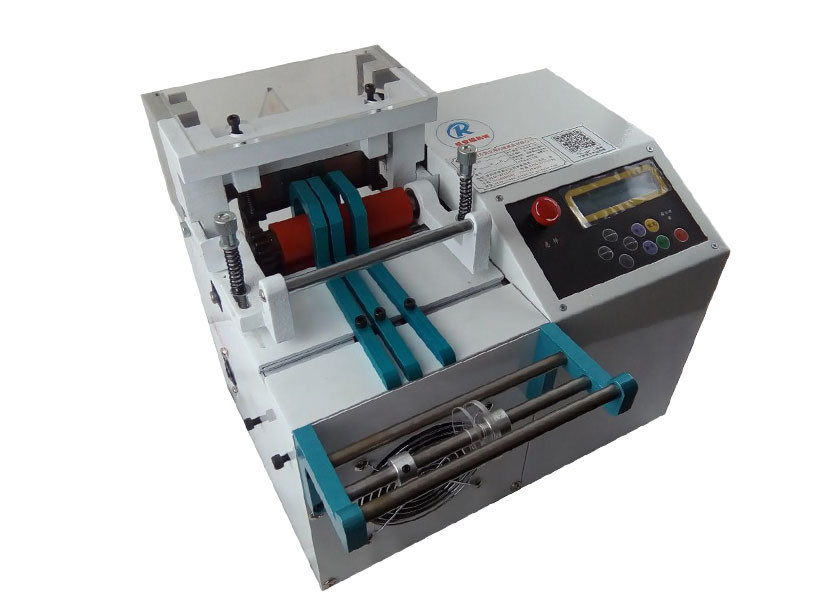

Automatic pipe cutting machine with fixed length for plastic hose and casing

Automatic pipe cutting machine with fixed length for plastic hose and casing

Microcomputer pipe cutting machine

1, Explanation

It is widely used for the fixed length automatic cutting of plastic hose, sheet and strip.

The features of this machine are as follows:

1. High precision stepper motor precisely controls the length and the speed is adjustable. 2. LCD large screen display, switching between Chinese and English, easy to operate. 3. It can be operated by hand and automatically. The total amount can be set in batches. 4. The system can set the program according to the requirements.

2. Machine parts

Main control board, key board, control board, LCD screen, stepper driver, stepper motor, mechanical components

3, Operating instructions

The picture of the panel is as follows

Power on LCD display screen:

Press this key to set the length: cutting length: the length to be cut; compensation coefficient: set the coefficient when the set length is not equal to the cutting length. (calculation method: set the length as N, and the actual cutting length as X, The setting value is: (N-X) / x + 1) press this key to set the feeding speed: the reaction value of feeding speed: feeding motor speed will appear, and the setting range is 0-200. Inching speed: the speed of manual feeding is 5

Press this key to set the product batch: batch setting will appear: how many pieces to cut in batches, and the setting range is 0-99999. Batch delay: each batch completion, pause how long and then automatically start.

Press this key to set the total quantity of products to be cut, and the total quantity parameter setting will appear: how many products to be cut in total, the setting range is 0-99999, and the total quantity value set by the automatic cutter of the machine will stop.

Restart delay: when a quantity is completed, how long can it be started again.

Press this key to set the cutter parameters:

There will be cutting times: feeding once, cutting once, the setting range is within the value range of 00001.

Cutter speed: indicates the cutter speed. Recommended setting range: 2000-4500.

Appendix I notes

a) Please do not disassemble the control products, otherwise you will not enjoy the warranty service.

b) Please do not use the internal power supply of the controller for the induction switch, which may cause power interference and cause misoperation.

c) Do not work in the environment full of strong acid gas, which will cause damage to all parts from electronic components to plastic shell

Permanent damage.

d) It is better to control the external equipment through the relay rather than directly. External relay I

The freewheeling diodes must be connected in parallel, otherwise the internal circuit may be damaged or malfunction may be caused; if the external return relay is connected, the freewheeling diodes need not be connected in parallel.
