Product Details:
|
| Process Length: | 140-9999mm (touch Screen Digital Setting) | Inner Core Wire Diameter: | 0.8-2.0mm |
|---|---|---|---|
| Inner Core Numbers: | 2-16P (depend On Wire) | Outer Wire Diameter: | 4-10mm |
| Crimp Force: | Horizontal Mold Die: 2T | Dimensions: | 220x90x175cm |
| High Light: | 16P cutting and crimping machine,2T cutting and crimping machine |
||

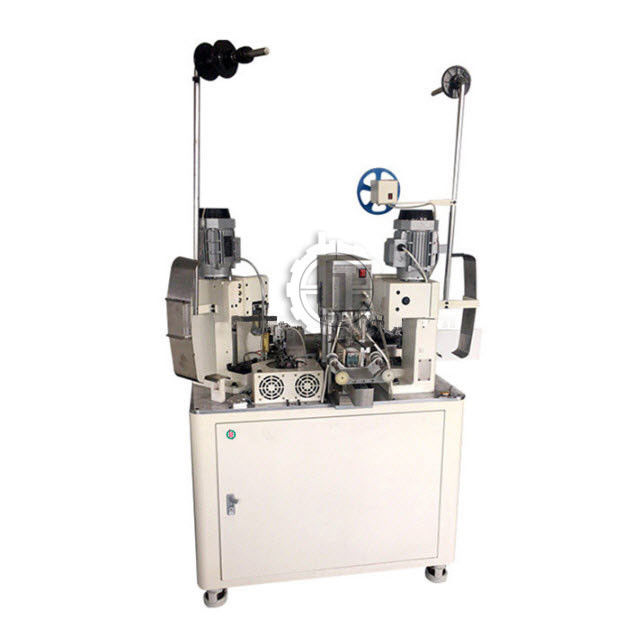

Multi-core Cable Double-End Stripping Crimping Cutting Machine

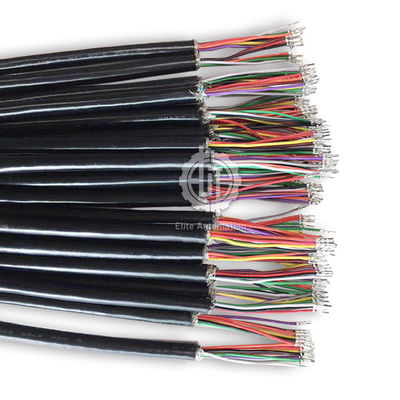

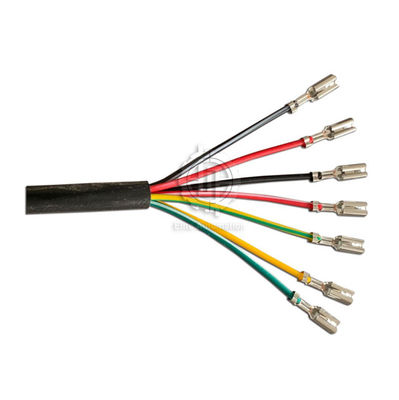

Wire cutting, cable outer sheath & inner core stripping, and both ends terminal crimping are all possible with this cable crimping unit.
Wire diameter limit: 10mm; inner core number limit: 16p; stripping period limit: 60mm
It's compatible with a wide range of wire pay-off devices.
For more information, please contact our sales people. We will be very happy to access your needs and give you back a best solution for your case. Our company also be very good at doing modifications for all of our machines to suit your particularly needs. Make-to-Your-Need is one of our key services. You will find that we are not only a machinery maker but also a total solution provider to your practically cases. We are looking forward to have investigation and discussion with you.
| Process length | 140-9999mm (touch screen digital setting) |
| Outer wire strip length | 25-60mm (touch screen adjustment) 2-3P:25-30mm; 4-5P:30-35mm; 6-10P:35-40mm; Above 10P, based on wire |
| Inner core wire diameter | 0.8-2.0mm |
| Inner core numbers | 2-16P (depend on wire) |
| Outer wire diameter | 4-10mm |
| Crimp force | Horizontal mold die: 2T |
| Work effciency | About 700piecs/hour (base on 10P, length 200mm) |
| Power | 900W |
| Air connection | 0.4 MPa |
| Weight | 700kg |
| Dimensions | 220x90x175cm |
| Other functions | Terminal lack detect, wire lack detect, total wire number detect and wire number of each bar |
