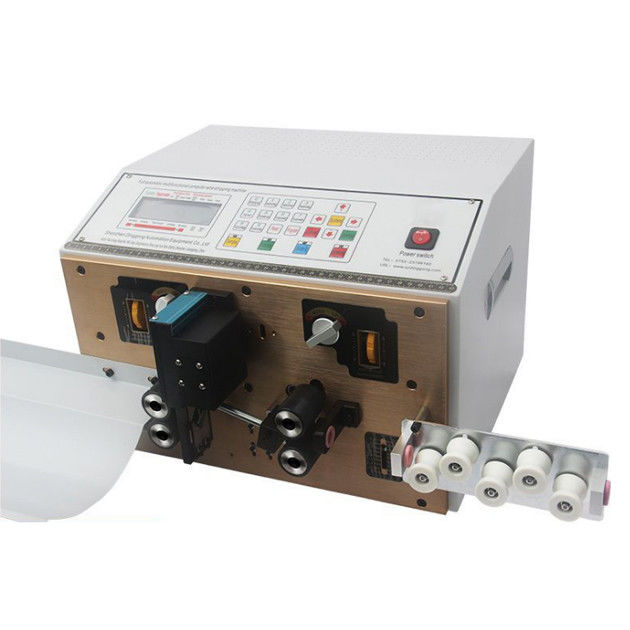

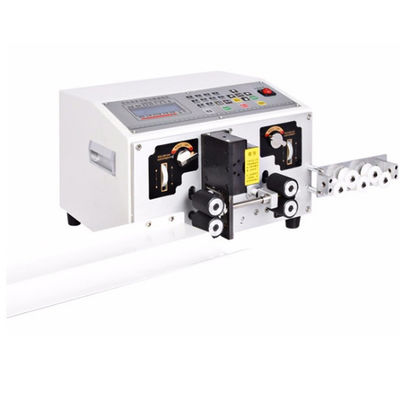

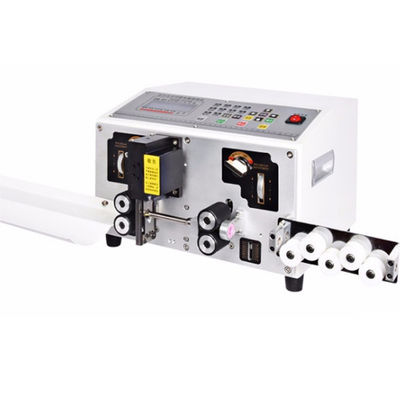

Electric Discrete Wire & Multi Conductor Cable Stripping Machine

Electric Discrete Wire & Multi Conductor Cable Stripping Machine
large.img.alt
Electric Discrete Wire & Multi Conductor Cable Stripping Machine Electric Discrete Wire & Multi Conductor Cable Stripping Machine Electric Discrete Wire & Multi Conductor Cable Stripping Machine Electric Discrete Wire & Multi Conductor Cable Stripping Machine

Large Image :  Electric Discrete Wire & Multi Conductor Cable Stripping Machine

Product Details:
Place of Origin: SHENZHEN CHINA
Brand Name: ELITE
Model Number: JR-001
Payment & Shipping Terms:
Minimum Order Quantity: 3 PCS
Price: TBA
Packaging Details: Wooden case
Payment Terms: T/T
Supply Ability: 50 pcs/day

Electric Discrete Wire & Multi Conductor Cable Stripping Machine

Description
Model: JR-001 Available Wire Size: 0.03- 6mm² (32- 8 AWG)
Max. Cable OD: 4.0mm (0.12") Full Strip: 1mm (0.019")
Partial Strip 2mm (0.078%22) Setting Accuracy 0.01mm (0.001%22) Max. Stripping Length 18mm Processin: 2mm (0.078")
High Light:

Electric Discrete Wire Stripping Machine

,

Multi Conductor Cable Stripping Machine

Electric Discrete Wire & Multi-conductor Cable Stripping Machine





The JR-001 electric wire stripper can process discrete wires, solid wires, single-stranded wires, single-core cables, multi-core cables, rubber wires and PUR PVC FEP wires.

Suitable for stripping discrete wires and small multi-conductor cables

Extremely short cycle times

No need to change blade

Being able to strip very short cables



Model JR-001
Available wire size 0.03- 6mm² (32- 8 AWG)
Max. cable OD 4.0mm (0.12")
Full strip 1mm (0.019")
Partial strip 2mm (0.078")
Setting accuracy 0.01mm (0.001")
Max. stripping length 18mm
Processing time 0.3s
Air pressure 0.5Pa-0.8Pa
Net weight 3kg (6.6 lbs.)
Dimension (Length * Width * Height) 265 x 70 x 135 mm (10.4 "x 2.8" x 5.3 ")
